ASTM A213 T12 (ASME SA213 T12) is a low-alloy seamless steel pipe designed for high-temperature service.
Its primary alloying elements are 0.80–1.25% chromium and 0.44–0.65% molybdenum, which classify it as a chromium-molybdenum alloy steel. It is widely used in high-temperature and high-pressure environments such as boilers, superheaters, and heat exchangers.
T12 pipe has a minimum tensile strength of 415 MPa and a minimum yield strength of 220 MPa.
The UNS designation for this grade is K11562.
Botop Steel is a professional and reliable alloy steel pipe stockist and wholesaler in China, capable of quickly supplying your projects with various grades of alloy steel pipes, including T5 (K41545), T9 (K90941), T11 (K11597), T12 (K11562), T22 (K21590), and T91 (K90901).
Our products are of reliable quality, competitively priced, and support third-party inspection.
For orders or more information, please contact us today!
Manufacturer and Condition
ASTM A213 T12 steel pipes shall be made by the seamless process and shall be either hot finished or cold finished, as specified.
Heat Treatment
All T12 steel pipes shall undergo heat treatment.
Permissible heat treatment methods include full or isothermal annealing, normalizing and tempering, or subcritical annealing.
| Grade | Heat treat type | Subcritical Annealing or Temperature |
| ASTM A213 T12 | full or isothermal anneal | — |
| normalize and temper | — | |
| subcritical anneal | 1200-1350 ℉ [650-730 ℃] |
It should be noted that the heat treatment must be carried out separately and in addition to hot forming.
| Grade | Composition, % | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| T12 | 0.05 ~ 0.15 | 0.30 ~ 0.61 | 0.025 max | 0.025 max | 0.50 max | 0.80 ~ 1.25 | 0.44 ~ 0.65 |
It is permissible to order T12 with a maximum sulfur content of 0.045. The marking shall include the letter "S" following the grade designation, as in T12S.
| Mechanical Properties | ASTM A213 T12 | |
| Tensile Requirements | Tensile Strength | 60 ksi [415 MPa] min |
| Yield Strength | 32 ksi [220 MPa] min | |
| Elongation in 2 in. or 50 mm |
30 % min | |
| Hardness Requirements | Brinell/Vickers | 163 HBW / 170 HV max |
| Rockwell | 85 HRB max | |
| Flattening Test | One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot. | |
| Flaring Test | One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot. | |

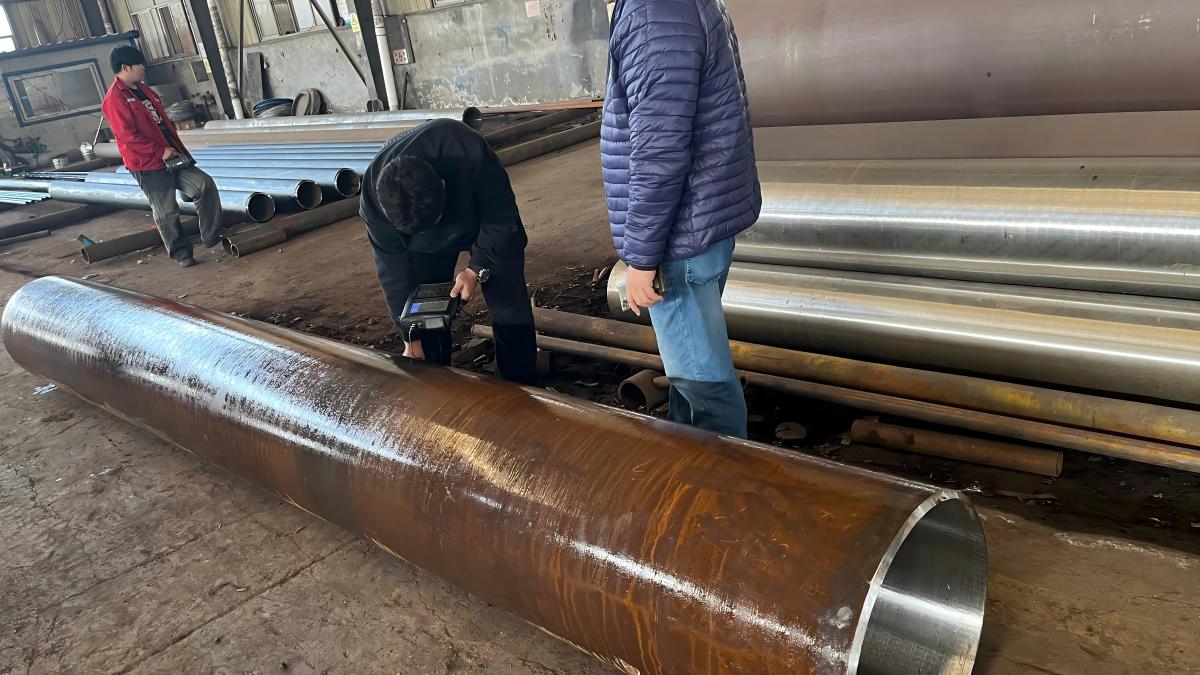

Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.
The testing methods shall be carried out in accordance with the applicable requirements of Sections 25 and 26 of ASTM A1016.
ASTM A213 T12 tubing sizes and wall thicknesses are usually furnished with inside diameters ranging from 3.2 mm to outside diameters of 127 mm, and minimum wall thicknesses from 0.4 mm to 12.7 mm.
Other sizes of T12 steel pipes can also be supplied, provided that all other requirements of ASTM A213 are met.
ASTM A213 T12 alloy steel seamless tubes are primarily used in high-temperature and high-pressure service environments. Typical applications include
1. Superheaters and Reheaters
Used in power plants for superheater and reheater tubes operating under elevated temperatures and pressures.
2. Boiler Tubes
Widely applied as boiler tubes in thermal power stations, waste-heat recovery units, and industrial boilers.
3. Heat Exchangers
Suitable for heat exchanger tubing in the petrochemical and chemical industries due to its good creep resistance and thermal stability.
4. Furnace and Heater Tubes
Installed in refinery furnace coils, heater tubes, and process heaters where oxidation resistance and long-term strength are required.
5. Pressure Piping in Power and Petrochemical Plants
Used for high-temperature pipelines, including steam lines and hot fluid transport lines.
| ASME | ASTM | EN | GB | JIS |
| ASME SA213 T12 | ASTM A335 P12 | EN 10216-2 13CrMo4-5 | GB/T 5310 15CrMoG | JIS G 3462 STBA22 |
Material: ASTM A213 T12 seamless steel pipes and fittings;
Size: 1/8" to 24", or customized according to your requirements;
Length: Random length or cut to order;
Packaging: Black coating, beveled ends, pipe end protectors, wooden crates, etc.
Support: IBR certification, TPI inspection, MTC, cutting, processing, and customization;
MOQ: 1 m;
Payment Terms: T/T or L/C;
Price: Contact us for the latest T12 steel pipe prices.
